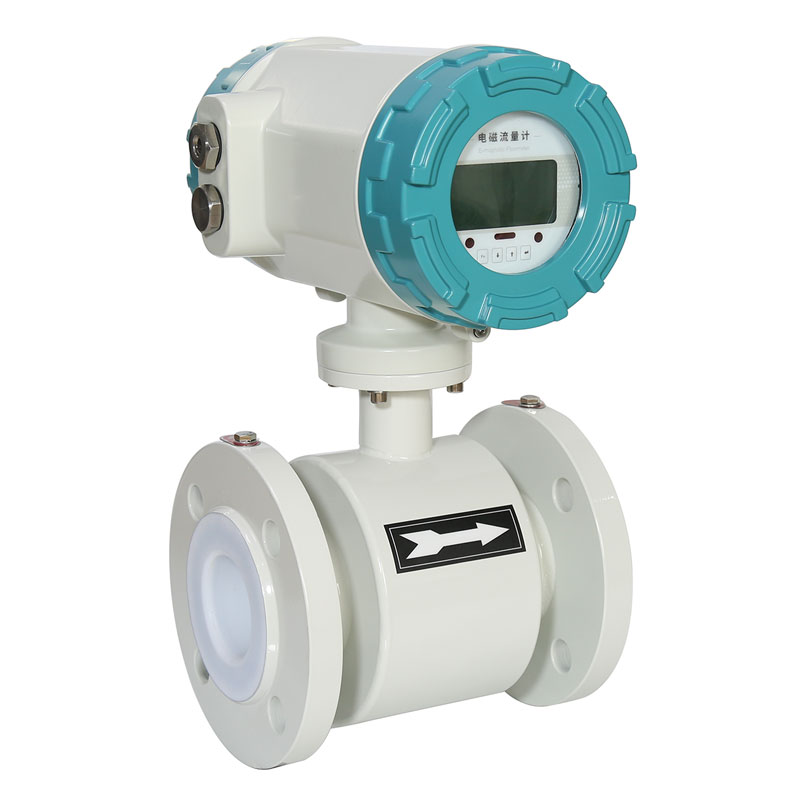

Flowmeter elektromagnetik adalah sejenis instrumen induktif yang dirancang oleh hukum Faraday tentang induksi elektromagnetik untuk mengukur aliran media konduktif dalam tabung. Ini mengadopsi teknologi penyisipan chip tunggal untuk mewujudkan eksitasi digital dan mempekerjakan fieldbus BISA lokal.
Magnetic flow meter induktif dapat mewujudkan indikasi lokal dan output sinyal arus listrik 4-20mA yang dapat digunakan untuk merekam, menyesuaikan dan mengontrol. Mag meter adalah meter aliran industri; dapat digunakan dalam perlindungan lingkungan, metalurgi, farmasi, pembuatan kertas, pasokan air ( meteran air magnetik ) dll.
Selain mengukur aliran cairan konduktif umum, meteran magnet dapat mengukur aliran cairan campuran cair-padat, cairan viskositas tinggi dan garam, asam kuat dan alkali kuat untuk digunakan sebagai flow meter kimia, flow meter sanitasi atau flow meter sewage . Kami adalah pemasok untuk flow meter elektromagnetik bore penuh. Klik di sini untuk mengetahui informasi lebih lanjut tentang pemilihan liner dan elektroda untuk berbagai jenis pengukuran aliran medium korektif.
Sebagai produsen Cina flow meter magnetik, harga flow meter magnetik masuk akal, meteran magnetik kustom juga dengan waktu pengiriman cepat karena suku cadang flow meter berlimpah di gudang kami.
Picture |
|
|
|
|
Model |
SE 11 Standard |
SE12 High Accuracy |
SE13 Sanitary |
SE14 Insertion type |
Medium |
Conductivity Fluids |
|||
Accuracy |
±0.5% |
±0.25% |
±0.5% |
±1.5% |
Repeatability |
±0.25% |
±0.125% |
±0.25% |
±0.75% |
Fluid Temperature |
-25°C ~ 130 °C |
-25°C ~ 130 °C |
-25°C ~ 130 °C |
-25°C ~ 130 °C |
Conductivity |
≥ 5μs/cm ( soft water should be ≥ 20μs/cm) |
|||
Size |
10~2000 mm |
10~2000 mm |
10~125 mm |
200~3000 mm |
Operation Pressure |
0.6Mpa/1.0Mpa/1.6Mpa/2.5Mpa/4.0Mpa/Others |
|||
Velocity |
0.5 m/s ~ 10 m/s |
|||
Flow Direction |
Forward / Reversed |
|||
Electrodes Material |
316L / Hastelloy C2,B4/Tantalum/Titanium/Platinoiridita/others |
|||
Liner Material |
Rubber /PTFE/PFA |
PFA |
PTFE |
|
Electrodes Type |
Standard |
|||
Qty of Electrodes |
2 pairs ( one pair for measuring, one pair for grounding) |
1pair ( measuring) |
||
Tube Material |
304 Stainless Steel |
|||
Flange Material |
Carbon steel/304 Stainless steel |
304 Stainless steel |
304 Stainless steel |
|
Installation Type |
Flange |
Tri-clamp/screw |
Flange/plug-in |
|
Protection level |
IP65/P68 ( Remote Version) |
|||
Power |
220VAC ±20% 60HZ / 24 VDC |
|||
Signal Output |
4~20mA |
|||
Communication |
Hart / Modbus/ Profibus |
|||
Electrical connection |
2* M20 * 1.5 |
|||
Explosive-Proof |
Exd eia II C T3~T6 |
|||
Construction Type |
Compact / Remote |
|||
Operation Environment |
Magnetic flow meters Operation Environment temperature:-25 °C~ + 60 °C; Relative Humility: 5% ~90% |
Size(DN) |
Pressure |
Min flow range velocity(0-0.5)m/s |
Max Flow range velocity(0-10)m/s |
10 |
4.0 Mpa |
(0-2.25)L/min |
(0-45)L/min |
15 |
4.0 Mpa |
(0-5)L/min |
(0-100)L/min |
20 |
4.0 Mpa |
(0-7.5)L/min |
(0-150)L/min |
25 |
4.0 Mpa |
(0-10L)/min |
(0-200)L/min |
32 |
4.0 Mpa |
(0-20L)/min |
(0-400)L/min |
40 |
4.0 Mpa |
(0-30L)/min |
(0-600)L/min |
50 |
4.0 Mpa |
(0-3)m³/h |
(0-60)m³/h |
65 |
4.0 Mpa |
(0-6)m³/h |
(0-120)m³/h |
80 |
4.0 Mpa |
(0-9)m³/h |
(0-180)m³/h |
100 |
1.6 Mpa |
(0-12)m³/h |
(0-240)m³/h |
125 |
1.6 Mpa |
(0-21)m³/h |
(0-420)m³/h |
150 |
1.6 Mpa |
(0-30)m³/h |
(0-600)m³/h |
200 |
1.6 Mpa |
(0-54)m³/h |
(0-1080)m³/h |
250 |
1.6 Mpa |
(0-90)m³/h |
(0-1800)m³/h |
300 |
1.0 Mpa |
(0-120)m³/h |
(0-2400)m³/h |
350 |
1.0 Mpa |
(0-165)m³/h |
(0-3300)m³/h |
400 |
1.0 Mpa |
(0-225)m³/h |
(0-4500)m³/h |
500 |
1.0 Mpa |
(0-330)m³/h |
(0-6600)m³/h |
600 |
1.0 Mpa |
(0-480)m³/h |
(0-9600)m³/h |
700 |
1.0 Mpa |
(0-660)m³/h |
(0-13200)m³/h |
800 |
1.0 Mpa |
(0-900)m³/h |
(0-18000)m³/h |
900 |
1.0 Mpa |
(0-1200)m³/h |
(0-24000)m³/h |
1000 |
1.0 Mpa |
(0-1350)m³/h |
(0-27000)m³/h |
1200 |
0.6 Mpa |
(0-2100)m³/h |
(0-42000)m³/h |
1400 |
0.6 Mpa |
(0-2700)m³/h |
(0-54000)m³/h |
1600 |
0.6 Mpa |
(0-3600)m³/h |
(0-72000)m³/h |
1800 |
0.6 Mpa |
(0-4500)m³/h |
(0-90000)m³/h |
2000 |
0.6 Mpa |
(0-5700)m³/h |
(0-114000)m³/h |
Item |
Code |
Description |
||||
Factory Mark |
SHD |
Silver Automation Instruments |
||||
Meter Type |
SE11 |
Standard ( 0.5% accuracy ,DN10~DN2000) |
||||
SE12 |
High Accuracy (0.25% accuracy,DN10~DN2000) |
|||||
SE13 |
Sanitary type (0.5% accuracy,DN10~DN125,Tri-clamp ) |
|||||
SE14 |
Insertion type (1.5% accuracy,DN200~3000) |
|||||
Meter Size |
-XXX |
Example:100=DN100, 4 inch magnetic flow meter |
||||
Electrode Material |
E0 |
316L SS |
||||
E1 |
Hastelloy B |
|||||
E2 |
Hastelloy C |
|||||
E3 |
Titanium |
|||||
E4 |
Tantalum |
|||||
E5 |
Pt/Iridium Alloy |
|||||
Liner Material |
L1 |
Teflon (PTFE) |
||||
L2 |
F46 (FEP) |
|||||
L3 |
PFA |
|||||
L4 |
Hard rubber |
|||||
Rated Pressure |
1G |
GB1.6Mpa |
1D |
DIN PN16 |
1A |
ANSI 150# |
2G |
GB2.5Mpa |
2D |
DIN PN25 |
2A |
ANSI 300# |
|
3G |
GB4.0Mpa |
3D |
DIN PN40 |
3A |
ANSI 600# |
|
S |
Special |
|||||
Working Temperature |
E |
<60 °C |
||||
H |
60~160 °C |
|||||
Protection Grade |
P0 |
IP65 |
||||
P1 |
IP 67 |
|||||
P2 |
IP68 (only for remote version, sensor IP68,converter IP65) |
|||||
Converter Type |
0 |
Compact |
||||
1 |
Remote (standard cable 5 meters) |
|||||
Output Signal Communication |
S0 |
4~20mA |
||||
S1 |
RS-485 |
|||||
S2 |
Hart |
|||||
S3 |
Profibus-DP*1 |
|||||
S4 |
Pulse Output |
|||||
Housing Material |
H0 |
Carbon steel |
||||
H1 |
304 SS |
|||||
H2 |
Special Demand |
|||||
Material of Body Flange |
F0 |
Carbon steel |
||||
F1 |
304 SS |
|||||
F2 |
Special Demand |
|||||
Power Supply |
G0 |
220V AC (85~265V,45~63 Hz) |
||||
G1 |
24V DC (18~36V) |
|||||
G2 |
Battery supply (without 4~20mA output) |
|||||
Explosion Proof |
0 |
Non(0 could be omitted) |
||||
Ex |
Exd eia II C T3~T6 |
